STB R1 R2 Signal Integrity Test Board, 50Ω Impedance Controlled PCB, Integrated SOL Calibration Kit for VNA, 5 Transmission Line Topologies, SMA Ports, for SI/PI Test, EMC & RF Engineering Teaching

Marchio: Generico
Stile: Portatile
Peso articolo: 350 Grammi
Tensione di esercizio min.: 5 Volt
Temperatura nominale superiore: 40 Gradi Celsius

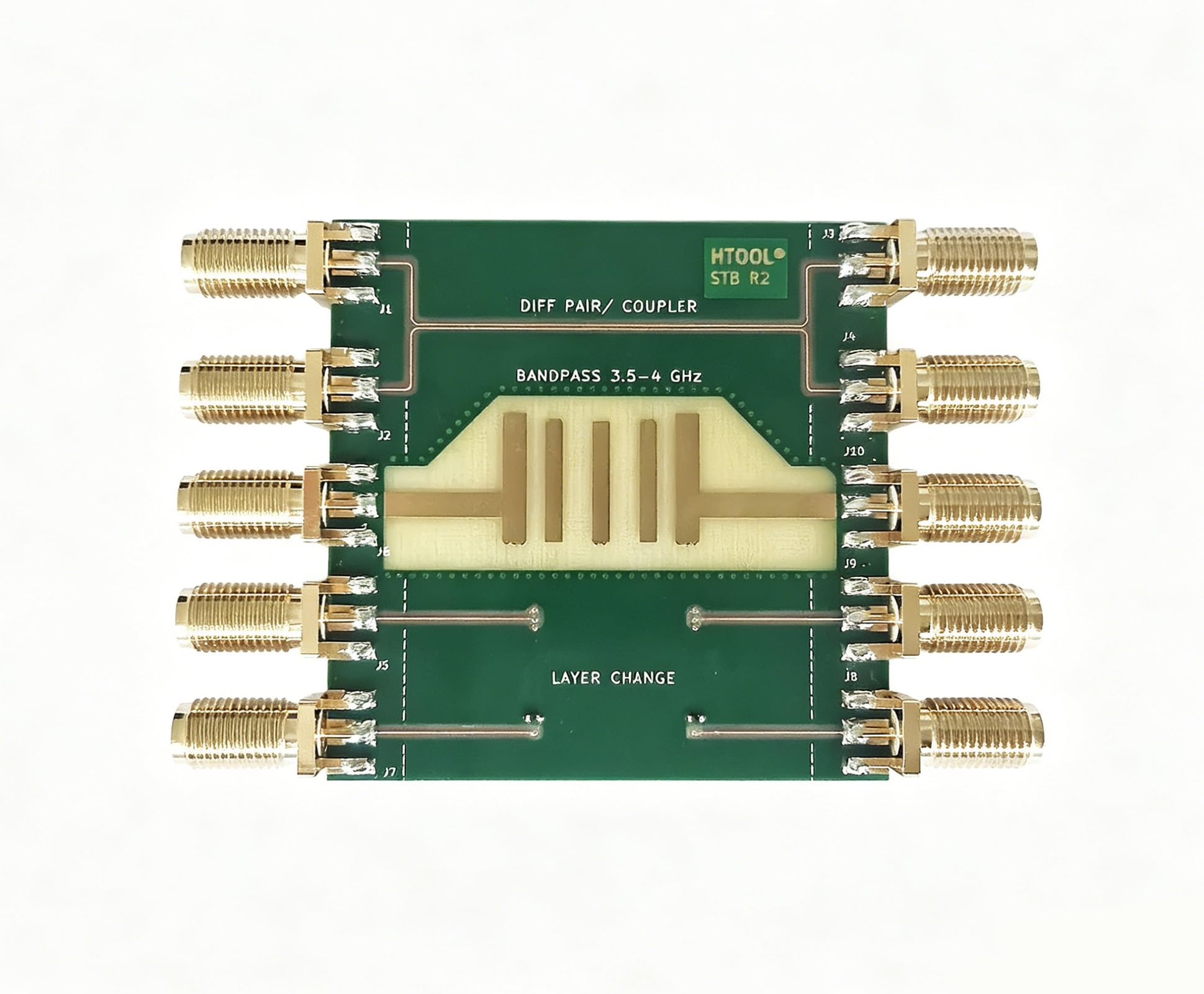

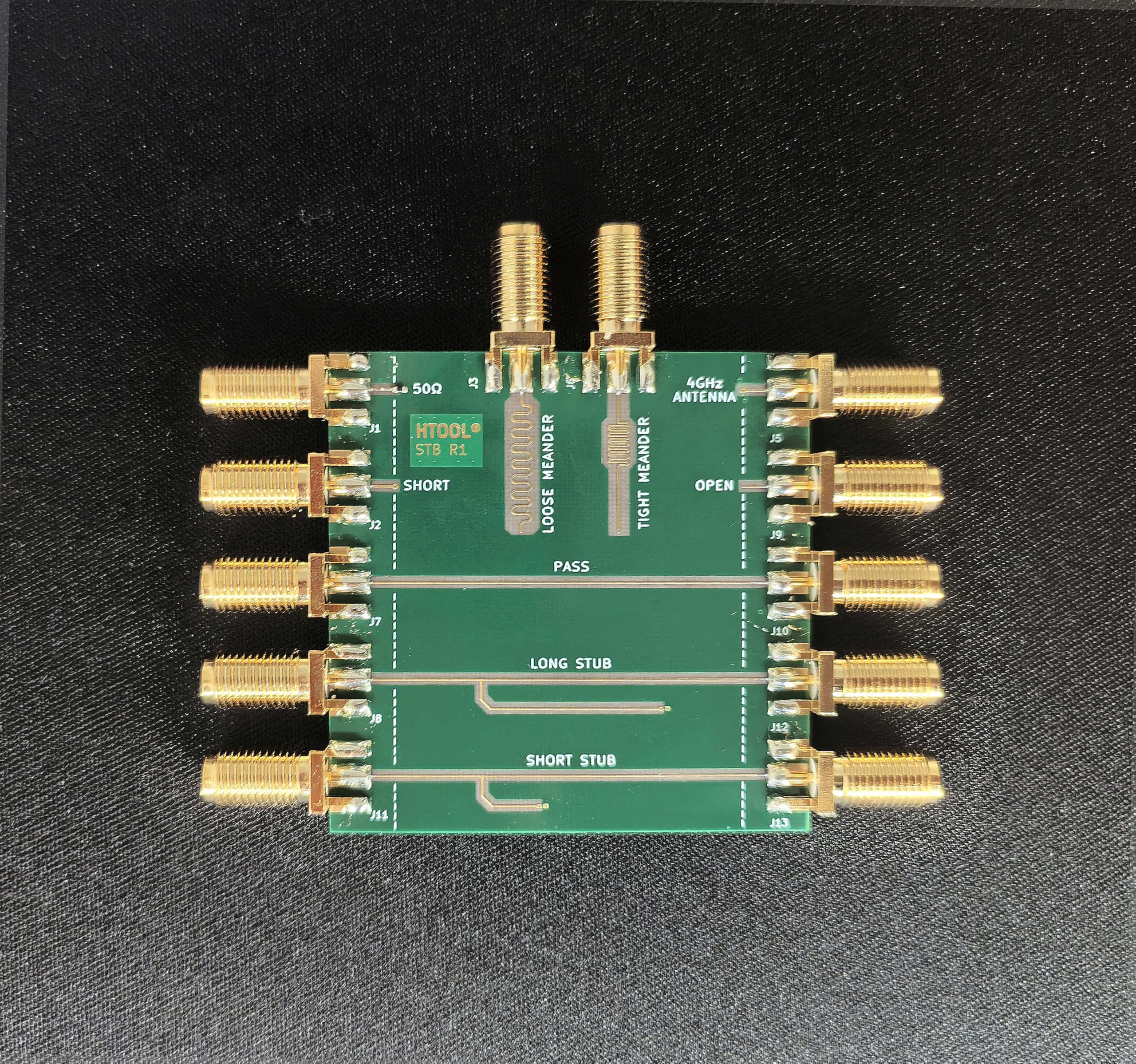

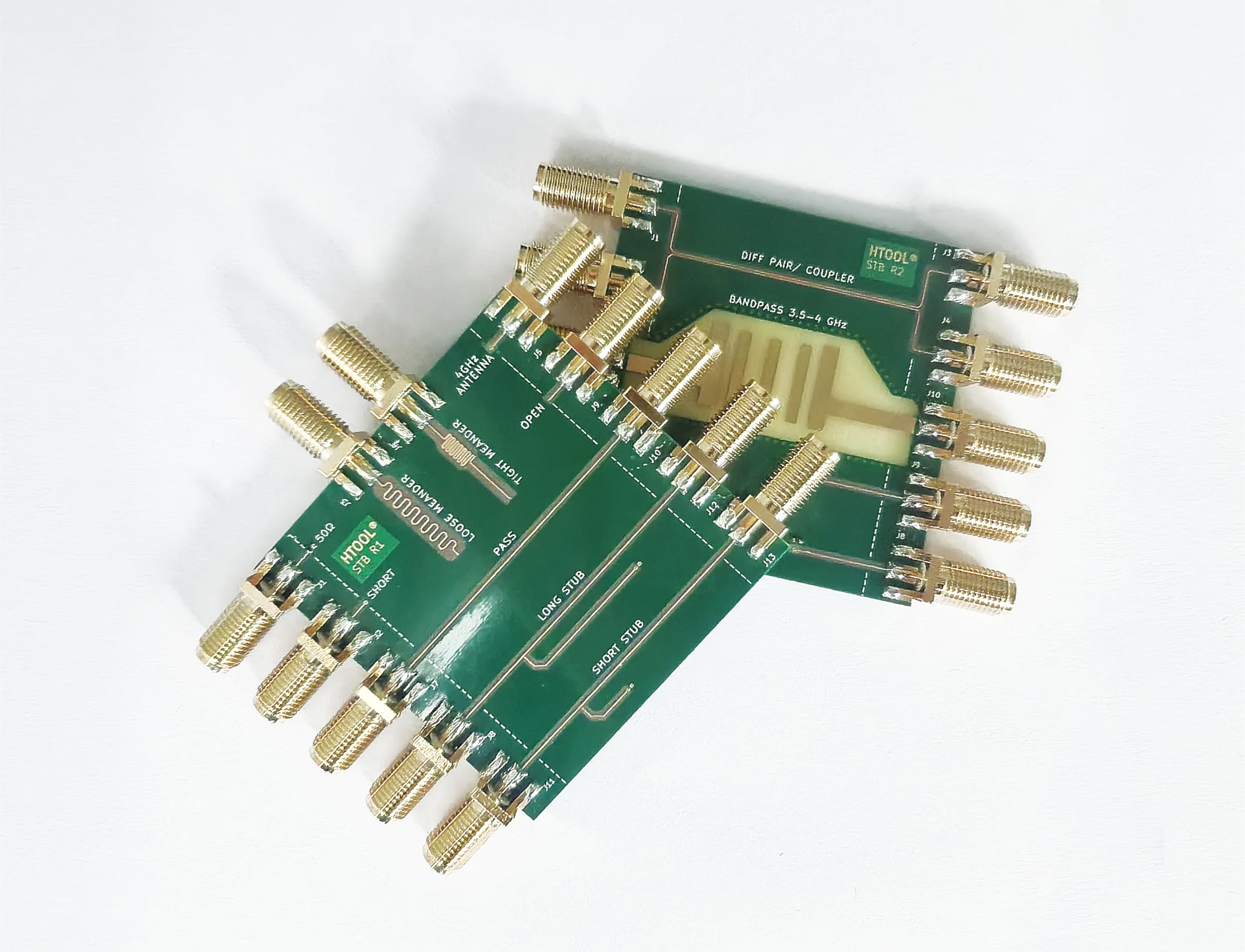

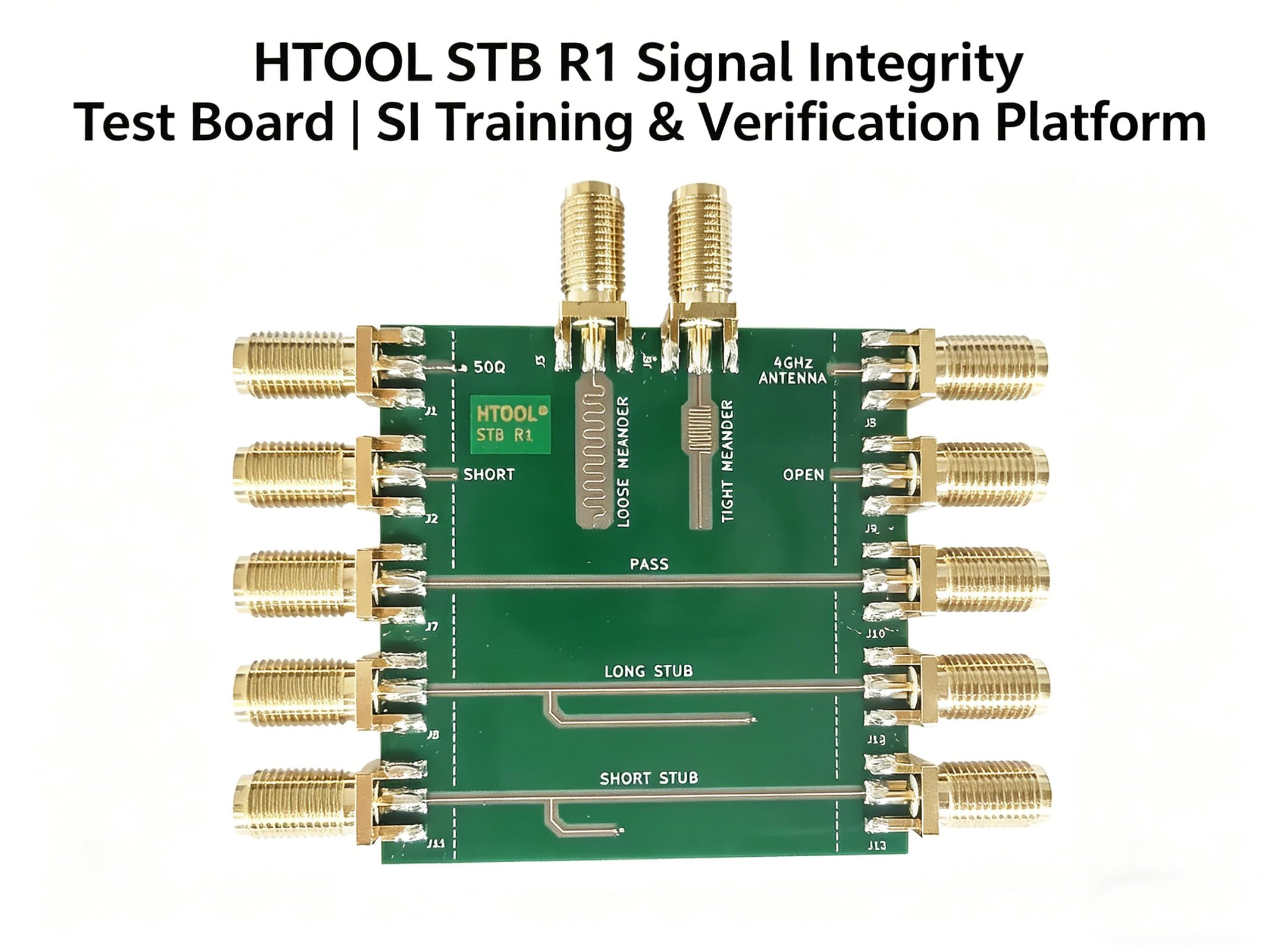

- ALL‑IN‑ONE SIGNAL INTEGRITY PLATFORM：Integrates 5 typical transmission line topologies: single‑ended stripline, long/short stub, tight/loose meander, and planar antenna; covers core SI experiments, ideal for RF engineers, SI/PI designers, and university electronics labs.

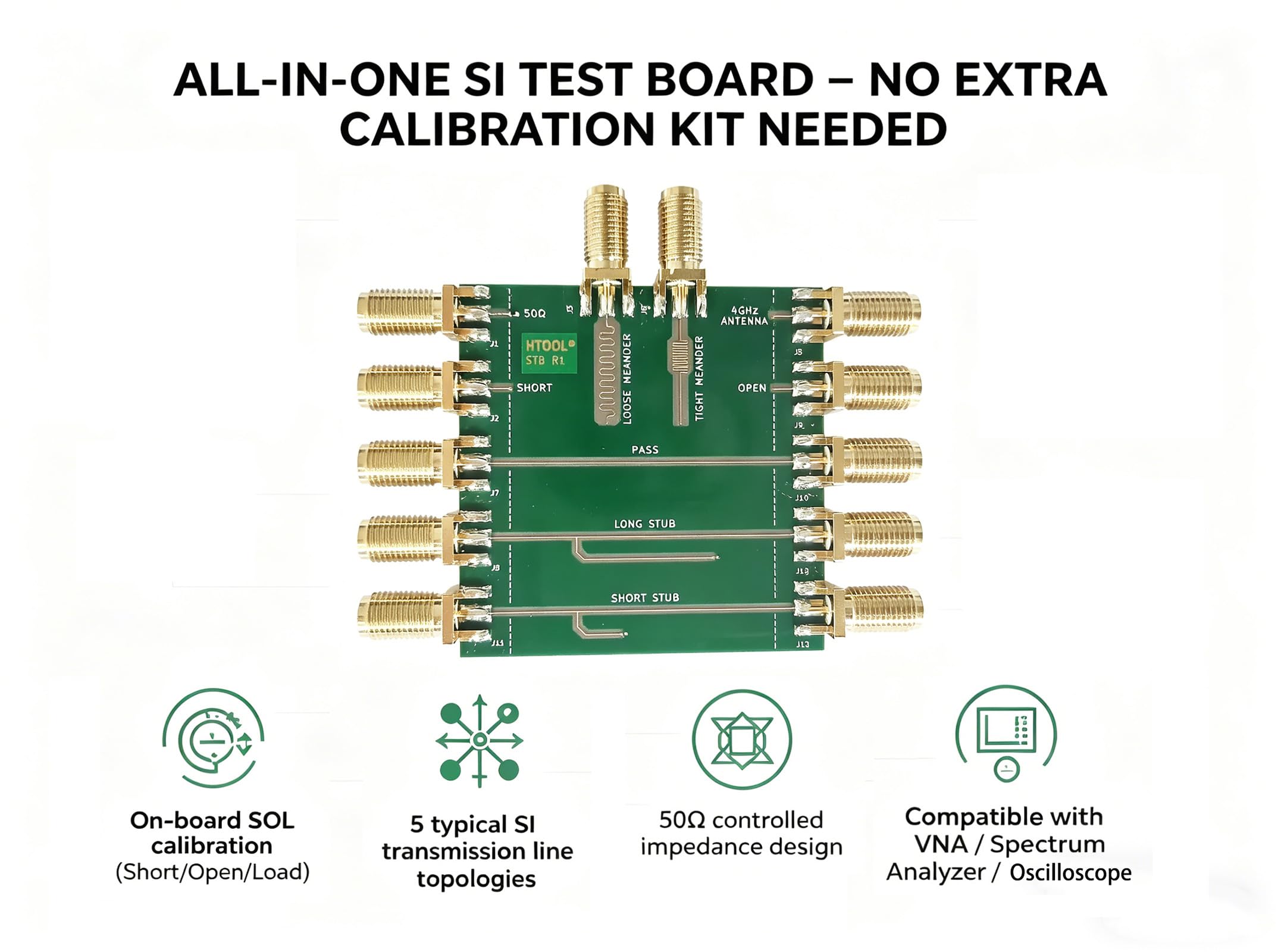

- ON‑BOARD SOL CALIBRATION FOR VNA：Built‑in Short‑Open‑Load 3‑port calibration set eliminates system errors from cables and connectors; no extra calibration parts needed, ready to use with vector network analyzers, spectrum analyzers and oscilloscopes.
- PRECISE 4‑LAYER 50Ω CONTROLLED IMPEDANCE：4‑layer FR‑4 PCB (TG≥150℃), 1.6mm thickness, ENIG surface treatment, impedance accuracy ±10%; all edge‑mount SMA female ports ensure stable connection and reliable measurement results.
- INTUITIVE SI COMPARISON & TEACHING：Directly compare stub notch frequencies, meander crosstalk and insertion loss; visualize transmission line effects, routing tradeoffs and antenna matching for faster learning and verification.
- ESD‑SAFE & DURABLE DESIGN：Comes with antistatic packaging; strict SMA operation standards prevent damage; compact 50×50mm size for bench testing, training and repeated laboratory use.
